Power Quality Consulting

Network Characterisation

STATCOM Verification

Power Factor Correction

• Is your PFC actually improving your Power Factor, and lowering your power bill?

• Is your PFC adequate to accommodate future loads?

• Location of PFC is critical to the overall performance at the point of common coupling (PCC)

Solar Array Verification

• Is your inverter operating at rated efficiency?

• Is your inverter generating sufficient reactive and active power to maintain a suitable Power Factor at the point of common coupling (PCC)?

• Is the inverter generating a high level of harmonics?

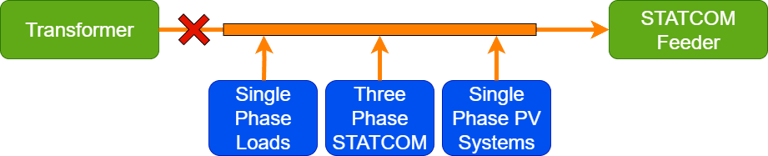

STATCOM connected to a residential network with grid connected solar (PV)

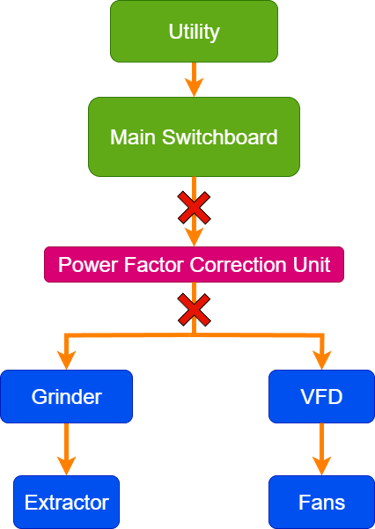

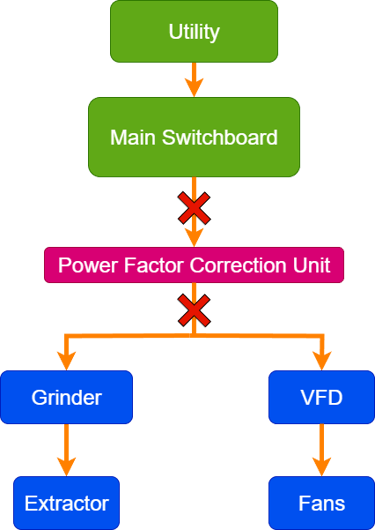

Main supply from the utility, PFC connected downstream of the main switchboard

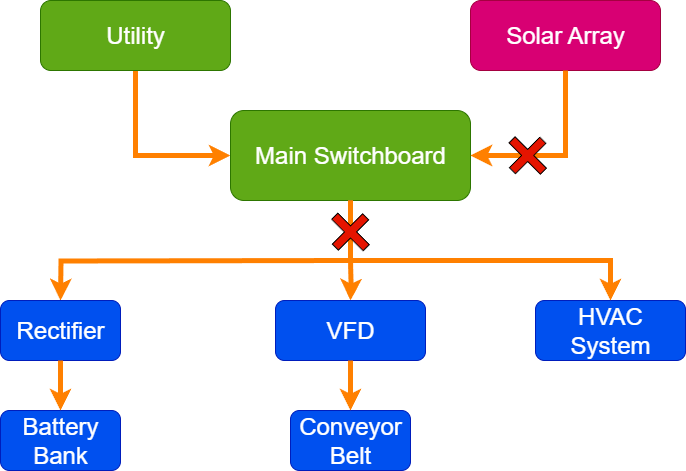

Supply from solar array and utility to power downstream loads at a manufacturing plant

• Is your STATCOM regulating voltage?

• Is your STATCOM balancing your power?

We can still help you!

"X" marks where the loggers go

"X" marks where the loggers go

"X" marks where the loggers go

None of the above?

Looking for engineering services?
