The PMC-592 MCPM is the ultimate solution for PDU, LVDB and Load Center applications that require multi-circuit monitoring. Housed in a compact metal enclosure, the PMC-592 is perfectly suited for applications that require high density metering. The PMC-592 features quality construction with multifunction and High-Accuracy measurements, two Mains Inputs, up to 84 Branch Circuit Inputs and an optional 7” Touch-Screen HMI. The PMC592 comes standard with two Digital Inputs for status monitoring, two Digital Outputs for control or alarming as well as two RTD Inputs for temperature measurements.

The standard SOE Log records all setup changes, Setpoint alarms and DI/DO operations in 1ms resolution. With Ethernet and dual RS-485 as standard feature supporting Modbus RTU/TCP, HTTP, SMTP as well as SNMP, the PMC-592 becomes a vital component of an intelligent, multi-circuit monitoring solution.

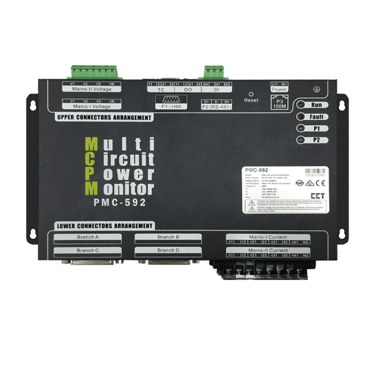

PMC-592 Multi-Circuit Power Monitor

Key Features:

• IEC 62053-22 Class 0.5S (Mains)

• IEC 62053-21 Class 1 (Branch)

• 2 x Mains Inputs each with 3xV & 4xI

• 21, 42, 63 or 84 Branch Circuits

• Support Solid-Core and Split-Core CT

• Possible In-Service Branch Expansion

• Mixing of 1-Ø, 2-Ø and 3-Ø Feeders

• 10 Virtual Meters (Aggregation)

• Dips/Swells Detection with WFR

• 1GB Non-Volatile Log Memory

• Data, Energy & Event Recording

• Harmonics on Mains and all Branches

• Demands and Max./Min.

• 4-Level Alarming – HH, H, L and LL

• 2xDI, 2xDO and 2xTemp. Inputs

• Battery-backed Real-Time Clock

• Ethernet, RS-422/232/485

• Embedded Web Server

• Multi-Protocol Support

• User Friendly 7″ Color Touch Panel

• Industrial Grade Components

• Tropicalization & Extended Temp Range
